PPCA: Probabilistic Principal Component Analysis

PCA is one of those algorithms you learn early and then treat as a black box: center the data, compute the top eigenvectors of the sample covariance, project. But PCA feels algebraic, where does it come from probabilistically? Probabilistic PCA (PPCA) answers that question: it is the maximum-likelihood solution of a simple linear Gaussian latent-variable model. Understanding PPCA is a tiny, high-value step on the path to modern generative models (VAEs, normalizing flows): it isolates the linear + Gaussian case where every calculation is analytic, so you can see clearly how inference and likelihood tie together.

Below I present a single self-contained story: model → marginal → posterior → likelihood → MLE solution → interpretation. I’ll highlight the key identities you need and keep the algebra explicit so nothing mysterious is swept under the rug.

Motivation

We want a generative model for $d$-dimensional observations $t$ that:

• Is simple enough to solve analytically; and
• Reduces to classical PCA in an appropriate limit.

A latent-variable model does exactly this: introduce a low-dimensional latent $x\in\mathbb{R}^q$ ($q

Model (linear Gaussian latent variable)

Assume the generative process

where $W$ is a $d\times q$ matrix (the linear mapping), $\mu\in\mathbb{R}^d$ is the mean, and $\sigma^2>0$ is isotropic noise variance. This is the PPCA model (Tipping & Bishop, 1999).

Two immediate facts:

1. Because both prior and likelihood are Gaussian, the marginal $p(t)$ and posterior $p(x\mid t)$ are Gaussian and computable in closed form.
2. The model has a rotational ambiguity in $W$: replacing $W$ by $W R$ for any orthogonal $R\in\mathbb{R}^{q\times q}$ leaves the model unchanged (with appropriate change of latent coordinates). So $W$ is identifiable only up to orthogonal transforms.

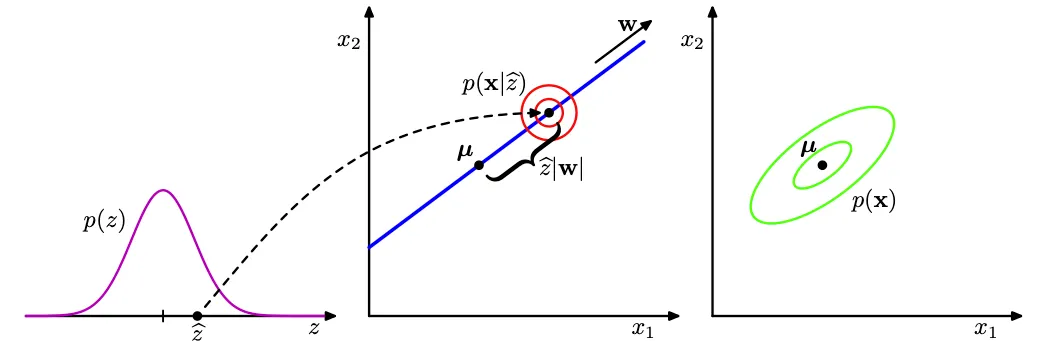

For the sake of clarity I’ll use the explanation of Oliver:

• Left panel: After sampling a variable from the latent distribution,
• Middle panel: The visibles are drawn from an isotropic Gaussian (diagonal covariance matrix) around $W * x_h + \mu$.
• Right panel: The resulting marginal distribution for the observables is also a Gaussian, but not isotropic.

Marginal distribution $p(t)$

We compute the marginal by integrating out $x$:

Set $r := t-\mu$. Using the Gaussian forms,

Collect the quadratic terms in $x$:

Define the $q\times q$ matrix

Completing the square in $x$ gives a Gaussian integral whose value is $(2\pi)^{q/2} |M|^{-1/2}$. Carefully tracking normalization constants (from $p(x)$ and $p(t\mid x)$) yields

Now recognize the familiar covariance and precision using two matrix identities.

Woodbury identity (precision)

For $C := W W^\top + \sigma^2 I_d$,

This matches the precision we found in the exponent.

Matrix determinant lemma

Therefore $(\sigma^2)^{d/2}|M|^{1/2}=|C|^{1/2}$.

Putting the pieces together,

So PPCA is a Gaussian density with covariance equal to the low-rank part $W W^\top$ plus isotropic noise.

Posterior $p(x\mid t)$ (exact inference)

From the quadratic completion above one also reads the posterior over $x$:

with

(Equivalently, define $M := I_q + \sigma^{-2}W^\top W$ and you get $\Sigma=M^{-1}$ and $m = M^{-1}\sigma^{-2}W^\top (t-\mu)$; both forms are algebraically the same.)

Two intuitions:

• When $\sigma^2$ is small, posterior variance is small and $m\approx (W^\top W)^{-1}W^\top (t-\mu)$, i.e. classical least-squares projection onto the column space of $W$.
• When $\sigma^2$ is large, the posterior concentrates near zero (the prior) because the observation is noisy.

Likelihood for a dataset and maximum likelihood estimation

Given $N$ i.i.d. datapoints $\lbrace t_i\rbrace_{i=1}^N$,

the log-likelihood is

where $S$ is the sample covariance

For fixed $\mu$ (choose $\mu=\bar t$), maximizing the likelihood reduces to minimizing

Tipping & Bishop show that the stationary point can be written in closed form using the top eigenstructure of $S$. Let the eigen-decomposition be

Split $U = [U_q\ U_{d-q}]$ and $\Lambda = \operatorname{diag}(\Lambda_q,\Lambda_{d-q})$ where $U_q$ are the top $q$ eigenvectors and $\Lambda_q$ the corresponding eigenvalues. Then the maximum-likelihood estimates are

A few remarks:

• The orthogonal matrix $R$ remains free: it is the rotational indeterminacy of the latent coordinates.
• The noise variance $\sigma^{2*}$ is the average of the discarded eigenvalues (the variance not explained by the principal subspace).
• When $\sigma^2\to 0$, the columns of $W^*$ span the same subspace as the top-$q$ PCA directions and $W^*W^{*\top}$ tends to $U_q\Lambda_q U_q^\top$. Thus PPCA recovers classical PCA as a limiting case.

If you want to compute the MLE in practice:

• You can directly solve for $\sigma^{2*}$ from the eigenvalues and then compute $W^*$ from the top eigenpairs (this is Tipping & Bishop’s closed form).
• Alternatively, you can optimize $L(W,\sigma^2)$ numerically or use an EM algorithm (below) if you prefer an iterative approach that cleanly separates the inference (E-step) and parameter update (M-step).

EM algorithm

EM treats $x$ as missing data. With current parameters $(W,\sigma^2)$ compute posterior expectations

Then M-step updates $W$ and $\sigma^2$ by solving linear equations involving these expectations (closed form). EM is useful when you want a monotonic increase in likelihood or when you want to generalize (e.g. to non-isotropic noise $\Psi$) where closed forms are less tidy.

PPCA vs Factor Analysis vs PCA

• Classical PCA: algorithmic; finds subspace spanned by top eigenvectors of $S$. No generative likelihood (no noise model).
• PPCA: linear generative model with isotropic Gaussian noise $\sigma^2 I_d$. Likelihood is available and PCA arises in the limit $\sigma^2\to 0$.
• Factor analysis (FA): same linear structure but with diagonal noise covariance $\Psi$ (not necessarily isotropic). FA is more flexible but algebraically messier, closed-form MLEs for $\Psi$ do not generally exist and EM is standard.

Sampling & use as a generative model

Sampling from PPCA is trivial and instructive:

1. Sample $x\sim\mathcal{N}(0,I_q)$.
2. Sample noise $\epsilon\sim\mathcal{N}(0,\sigma^2 I_d)$.
3. Return $t = W x + \mu + \epsilon$.

This generates samples from $\mathcal{N}(\mu, W W^\top + \sigma^2 I_d)$. So PPCA is not a complex high-capacity generative model, but it provides a clear probabilistic story for projection + reconstruction and clarifies the role of latent dimensions and noise.

Code and visuals

import numpy as np
import matplotlib.pyplot as plt
from numpy.linalg import eigh

# -------------------------------------
# Step 1. Generate some real 2D data
# -------------------------------------
np.random.seed(0)
N = 500
z = np.random.randn(N, 1)
T_real = np.hstack([z, 0.5*z + 0.2*np.random.randn(N, 1)])  # correlated data

# -------------------------------------
# Step 2. Estimate PPCA parameters
# -------------------------------------
# Center data
mu = T_real.mean(axis=0)
X_centered = T_real - mu

# Sample covariance
S = np.cov(X_centered.T)

# Eigen decomposition
vals, vecs = eigh(S)
idx = np.argsort(vals)[::-1]
vals, vecs = vals[idx], vecs[:, idx]

# Latent dimension q = 1
q = 1
U_q = vecs[:, :q]
Lambda_q = vals[:q]

# Compute sigma^2 and W
D = T_real.shape[1]
sigma2 = np.mean(vals[q:])  # average of remaining eigenvalues
W = U_q * np.sqrt(Lambda_q - sigma2)

print(f"Learned W =\n{W}")
print(f"Learned sigma^2 = {sigma2:.4f}")
print(f"Mean = {mu}")

# -------------------------------------
# Step 3. Generate new data from model
# -------------------------------------
N_gen = 500
x_gen = np.random.randn(N_gen, q)
eps = np.sqrt(sigma2) * np.random.randn(N_gen, D)
T_gen = x_gen @ W.T + mu + eps

# -------------------------------------

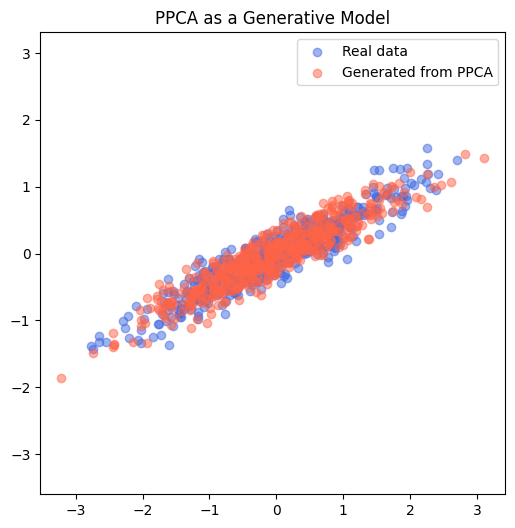

# Step 4. Compare
# -------------------------------------
plt.figure(figsize=(6,6))
plt.scatter(T_real[:,0], T_real[:,1], alpha=0.5, label="Real data", color="royalblue")
plt.scatter(T_gen[:,0], T_gen[:,1], alpha=0.5, label="Generated from PPCA", color="tomato")
plt.title("PPCA as a Generative Model")
plt.legend()
plt.axis("equal")
plt.show()

Intuition & how to read the equations

• $W W^\top$ captures the structured, low-rank variability in the data (the principal subspace).
• $\sigma^2 I_d$ captures isotropic residual noise, variance not explained by the subspace.
• The posterior $p(x\mid t)$ tells you how to infer latent coordinates of a datum: as noise decreases ($\sigma^2\to0$) the posterior collapses to a point and the mean becomes the usual linear projection onto principal components.
• The MLE for $\sigma^2$ being the mean of the discarded eigenvalues gives a neat decomposition: total variance = explained (top $q$ eigenvalues) + unexplained (average of remaining eigenvalues).

Bridge to VAEs (why study PPCA first)

A Variational Autoencoder (VAE) generalizes PPCA in two directions:

• Replace the linear decoder $W x + \mu$ by a neural network $f_\theta(x)$ (nonlinear decoder).
• Replace exact Gaussian posterior inference (available in PPCA) with an approximate amortized posterior $q_\phi(x\mid t)$ (the encoder), trained by variational inference.

PPCA is therefore the canonical linear Gaussian toy model where inference, sampling, and MLE are closed form. Studying PPCA first gives you a clean map of what changes when you make the model nonlinear and inference approximate.

References

[1] M. E. Tipping and C. M. Bishop, “Probabilistic Principal Component Analysis,” Journal of the Royal Statistical Society: Series B (Statistical Methodology) 61, 611-622 (1999), https://www.cs.columbia.edu/~blei/seminar/2020-representation/readings/TippingBishop1999.pdf

[2] S. Patel, “The Simplest Generative Model You Probably Missed,” Medium (2018), https://medium.com/practical-coding/the-simplest-generative-model-you-probably-missed-c840d68b704

[3] S. J. D. Prince, Understanding Deep Learning (MIT Press, 2023), https://udlbook.github.io/udlbook/
